New Product Launch: FITOK TET Series Electrical Heat Traced Tubing

FITOK TET Series Electrical Heat Traced Tubing



Introduction





TET Series Electrical Heat Traced Tubing is a pre-insulated tubing bundle that integrates an electric heating cable with one or more process tubes. It maintains the desired media temperature during transport using electric power. It is available in coiled or straight lengths, with low, medium, or high temperature heating cable options, and offers continuous exposure temperatures up to 230 °C. This makes it ideal for applications such as temperature maintenance and viscosity control.



Features





  • Materials: 316/316L SS or copper process tube with PVC or TPU outer jacket
  • Process Tube O.D.: 6~12 mm, 1/4"~1/2"
  • Available in low, medium, or high temperature heating cable types, capable of maintaining temperature up to 446°F (230°C)
  • One or two process tubes available as standard
  • Raychem® heating cables and electrical accessories



Major Materials of Construction





Major Materials of Construction

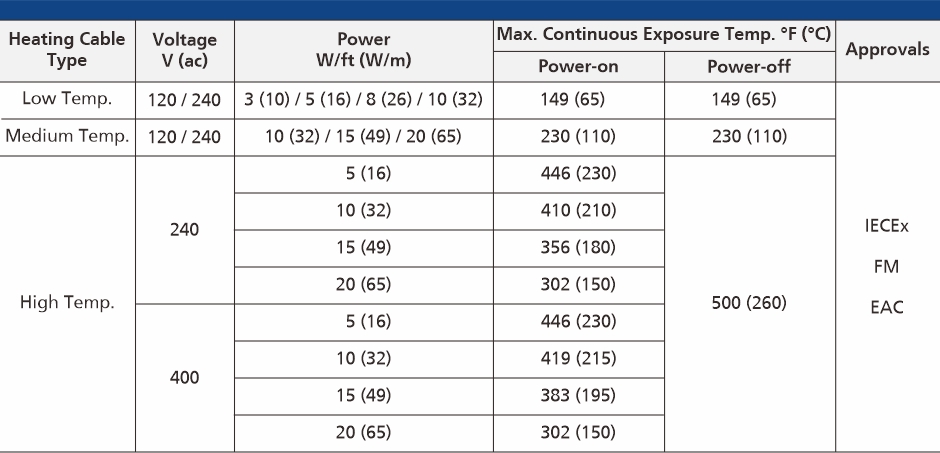

Heating Cable Specification





Heating Cable Specification



In addition to the TET Series Electrical Heat Traced Tubing, FITOK also offers TIT Series Insulated Tubing, TST Series Heat Trace Tubing with steam heating to meet different application needs.



For more information, please refer to the catalog for TET Series Electrical Heat Traced Tubing. Should you have any questions, please leave a message online, we will reach you as soon as possible!
