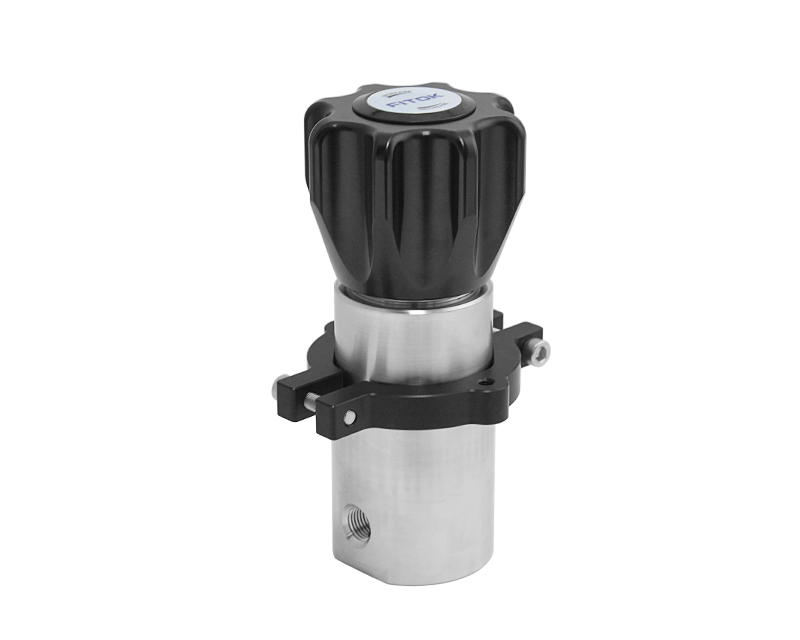

316 Stainless Steel, RPGX Series High Pressure Piston Regulator, Max Inlet Pressure 10000 psig (690 bar), Outlet Pressure 200 to 10000 psig (13.79 to 690 bar), 2 Ports (1 In, 1 Out), 1/4 Female NPT, NBR O-ring, With Panel Mount, With Self-Venting

Part Number:RPGX-SS-10K-10K-1H1-FNS4-N-SVPM-F1

Specifications

Part Number RPGX-SS-10K-10K-1H1-FNS4-N-SVPM-F1 Body Material 316 Stainless Steel
Max. Inlet Pressure 10000 psig (690 bar) Pressure Control Range 200 - 10000 psig (13.79 - 690 bar)
Porting 1 Inlet & 1 Outlet Inlet (IN) 1/4 Female NPT
Outlet (OUT) 1/4 Female NPT Flow Coefficient (Cv) 0.06
Min. Working Temperature -20°F (-29°C) Max. Working Temperature 165°F (74°C)
Installation Type Panel Mounting Clamp
