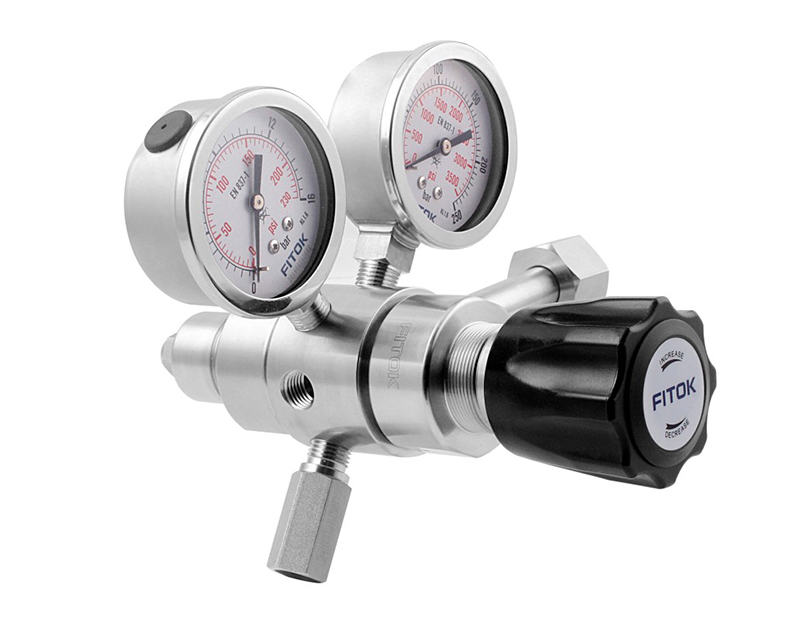

316L Stainless Steel, RDDC Series Dual-Stage Two-Stage Diaphragm Regulator, Max. Inlet Pressure 3500 psig (241 bar), Outlet Pressure Range 0 to 100 psig (0 to 6.89 bar), 3 Inlets & 3 Outlets, C660 Cylinder Connection × 1/4 Female NPT, Inlet and Outlet With Gauge (psi/bar), Auxiliary Inlet With Plug, Auxiliary Outlet Relief Valve, FITOK FC-02 Special Cleaning and Packaging Process

Part Number:RDDC-6L-35H-1H-3R3-C660-FNS4-IBAP-OBR-F2

Specifications

Part Number RDDC-6L-35H-1H-3R3-C660-FNS4-IBAP-OBR-F2 Body Material 316L Stainless Steel
Max. Inlet Pressure 3500 psig (241 bar) Pressure Control Range 0 - 100 psig (0 - 6.9 bar)
Porting 3 Inlets & 3 Outlets Inlet (IN) C660 Cylinder Connection
Outlet (OUT) 1/4 Female NPT Inlet Pressure Gauge Port (Gi) With Gauge (psi/bar)
Auxiliary Inlet (Ein) With Plug Outlet Pressure Gauge Port (Go) With Gauge (psi/bar)
Auxiliary Outlet (Eout) With Relief Valve Flow Coefficient (Cv) 0.06
Min. Working Temperature -40°F (-40°C) Max. Working Temperature 165°F (74°C)
Installation Type Fixedly Mounted at Pipe Inlet or Outlet
