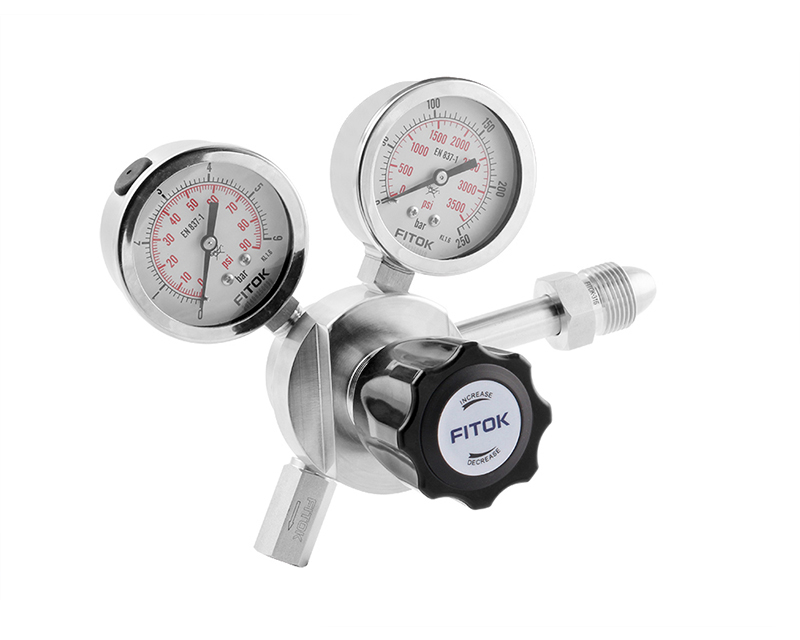

316L Stainless Steel, RDSC Series Sensitive Diaphragm Regulator, Max Inlet Pressure 3500 psig (241 bar), Outlet Pressure 0 to 50 psig (0 to 3.4 bar), 6 Ports(3 In, 3 Out), C580 Cylinder Connection × 1/4 Female NPT, Inlet and Outlet With Gauge (psi/bar), Auxiliary Inlet With Plug, Auxiliary Outlet With Relief Valve, FITOK FC-02 Special Cleaning and Packaging Process

Part Number:RDSC-6L-35H-50-3R3-C580-FNS4-IBAP-OBR-F2

Specifications

Part Number RDSC-6L-35H-50-3R3-C580-FNS4-IBAP-OBR-F2 Body Material 316L Stainless Steel
Max. Inlet Pressure 3500 psig (241 bar) Pressure Control Range 0 - 50 psig (0 - 3.4 bar)
Porting 3 Inlets & 3 Outlets Inlet (IN) DIN8 Cylinder Connection
Outlet (OUT) 1/4 Female NPT Inlet Pressure Gauge Port (Gi) With Gauge (psi/bar)
Auxiliary Inlet (Ein) With Plug Outlet Pressure Gauge Port (Go) With Gauge (psi/bar)
Auxiliary Outlet (Eout) With Relief Valve Flow Coefficient (Cv) 0.06
Min. Working Temperature -40°F (-40°C) Max. Working Temperature 165°F (74°C)
Installation Type Threaded Hole at the Bottom
