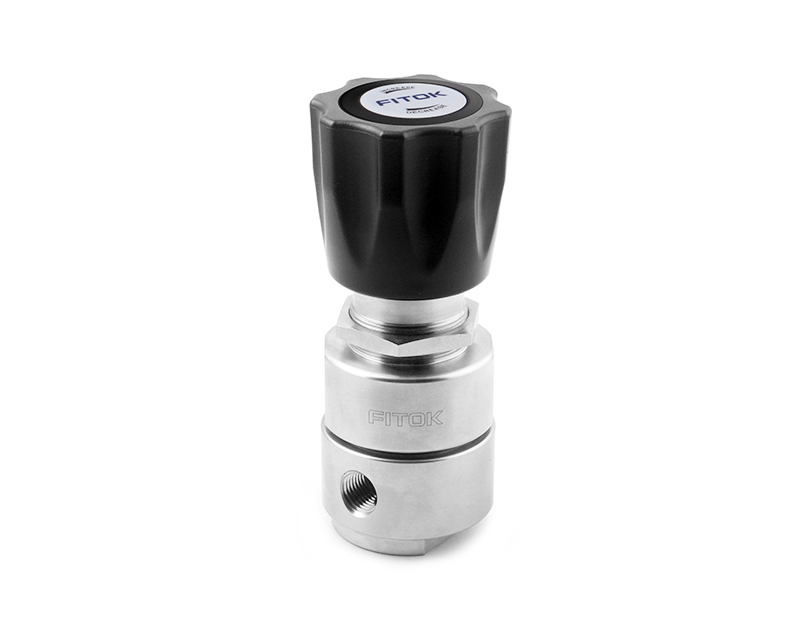

316L Stainless Steel, BPGC Series General Piston Back Pressure Regulator, Pressure Control Range 10 to 300 psig (0.69 to 20.7 bar), 2 Ports (1 In, 1 Out), 1/4 Female NPT, FFKM O-ring, Installed with One Panel Nut, FITOK FC-02 Special Cleaning and Packaging Process

Part Number:BPGC-6L-3H-1H1-FNS4-Z-PM-F2

Specifications

Part Number BPGC-6L-3H-1H1-FNS4-Z-PM-F2 Body Material 316L Stainless Steel
Pressure Control Range 10 - 300 psig (0.69 - 20.7 bar) Porting 1 Inlet & 1 Outlet
Inlet (IN) 1/4 Female NPT Outlet (OUT) 1/4 Female NPT
Flow Coefficient (Cv) 0.3 Min. Working Temperature 1.4°F (-17°C)
Max. Working Temperature 165°F (74°C) Installation Type Installed with Panel Nut
