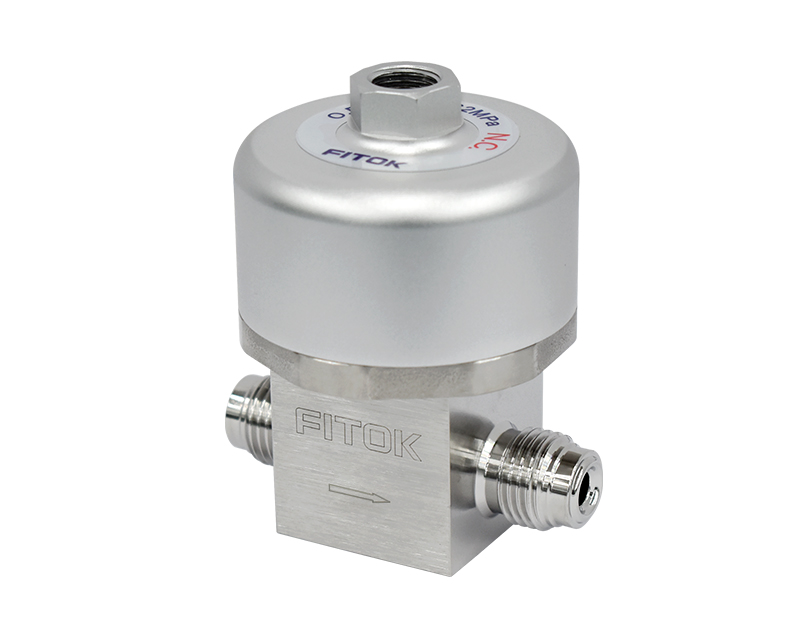

316L Stainless Steel, DE Series Economic Diaphragm Valve, 1/4 in. Integral Male FR Fitting, PCTFE Seat, Vacuum to 150 psig (10.3 bar), -10°F to 176°F (-23°C to 80°C), 0.27 Cv, Normally Closed Pneumatic Actuator, FITOK FC-03 Ultra-High Purity Process Specification

Part Number:DE6L-FR4-CF3

Specifications

Part Number DE6L-FR4-CF3 Body Material 316L Stainless Steel
Port 1 Type Integral Male FR Metal Gasket Face Seal Fitting Port 1 Size 1/4 in.
Port 2 Type Integral Male FR Metal Gasket Face Seal Fitting Port 2 Size 1/4 in.
Flow Coefficient (Cv) 0.27 Max. Working Pressure 150 psig (10.3 bar)
Min. Working Temperature -10°F (-23°C) Max. Working Temperature 176°F (80°C)
