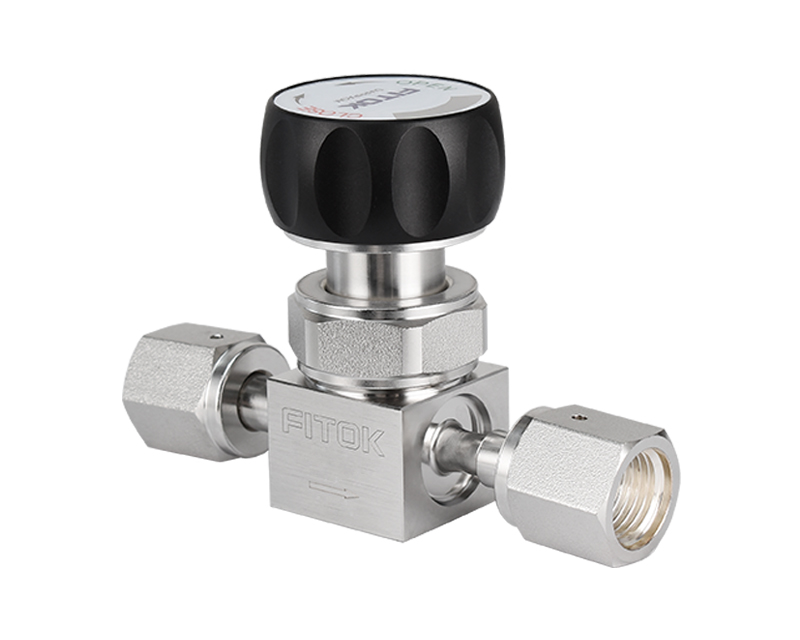

316L Stainless Steel, DQX Series Replaceable-Seat Diaphragm Valve, 1/4 in. Rotatable Female FR Metal Gasket Face Seal Fitting, PCTFE Seat, 250 psig (17.2 bar), -10°F to 176°F (-23°C to 80°C), 0.3 Cv, Manual Round Handle, FITOK FC-03 Ultra High Purity Process

Part Number:DQX6L-FFR4-RF3

Specifications

Part Number DQX6L-FFR4-RF3 Body Material 316L Stainless Steel
Port 1 Type Rotatable Female FR Metal Gasket Face Seal Fitting Port 1 Size 1/4 in.
Port 2 Type Rotatable Female FR Metal Gasket Face Seal Fitting Port 2 Size 1/4 in.
Flow Coefficient (Cv) 0.3 Max. Working Pressure 250 psig (17.2 bar)
Min. Working Temperature -10°F (-23°C) Max. Working Temperature 176°F (80°C)
