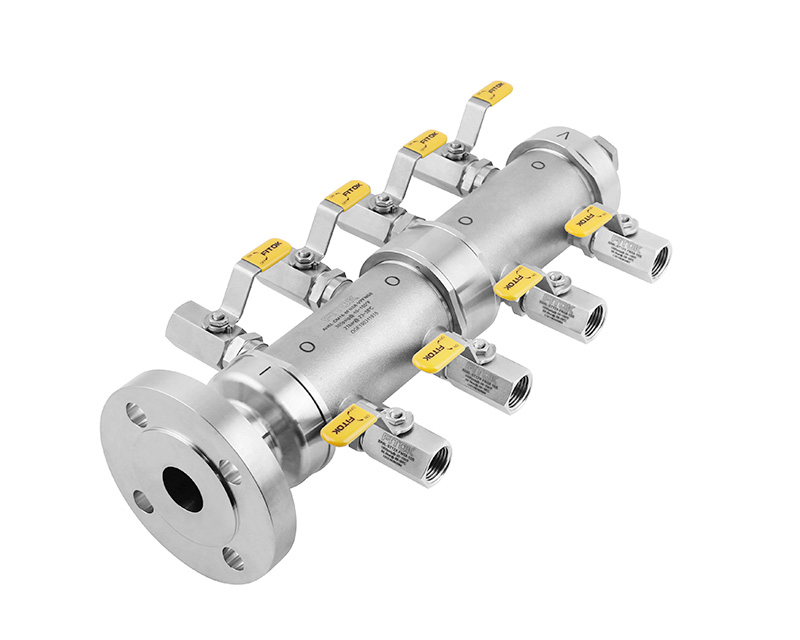

316 Stainless Steel, AH Series Air Header, Inlet: NPS 1 Class 150 RF Flange; Outlet: 8 Outlets with BR Series Ball Valves, 1/2 Female NPT; Vent: 1/2 Female NPT

Part Number:AHSS-AM16-8FNS8-FNS8

Specifications

Part Number AHSS-AM16-8FNS8-FNS8 Body Material 316 Stainless Steel
Port 1 Type RF Flange Port 1 Size NPS 1
Port 2 Type Female NPT Port 2 Size 1/2 in.
Vent Type and Size 1/2 Female NPT Max. Working Pressure 1000 psig (69 bar)
Min. Working Temperature 0°F (-17.8°C) Max. Working Temperature 250°F (121°C)
