New Product Launch: FITOK High Purity Ball Valves and Distribution Block Valves

FITOK BHP series 3-piece high purity ball valves are designed to meet the requirements of degreasing, high working pressure, high flow rate, and bi-directional flow for the clean dry air (CDA) and bulk gas distribution line, and are widely used in industries of specialty gas, semiconductor, chemical, etc. Integrating BHP series ball valves as branch valves, and main line tube with orbital welding, BDP series distribution block valves provide flexible layout for distribution system and improve the structural integrity of the system.

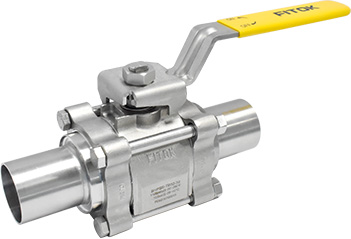

BHP Series 3-Piece High Purity Ball Valves





BHP Series 3-Piece High Purity Ball Valves



Features



  • PTFE/Modified PTFE/PEEK optional for valve seat
  • End connection welded tube in customized length available
  • Pneumatic or electric actuator available
  • FC-02 Special Cleaning and Packaging Process Specification
  • 1) According to the requirements of ASTM G93, Level C, non-volatile residues should not exceed 6 milligrams per square foot.
  • 2) Double bagged with vacuum sealed polyethylene dust-free inner bag (inert gas filling optional) and sealed polyethylene outer bag.



Technical Data




Max. Working Pressure 3000 psig (207 bar)
Working Temperature -20 °F to 450 °F (-28 °C to 232 °C)
Valve Body Material CF8M
Internal Surface Roughness Ra 25 μin. (0.6 μm)
Orifice 0.18" (4.6 mm) to 1.5" (38.1 mm)
Helium Leakage Rate ≤ 1x10-8 std cm3/s

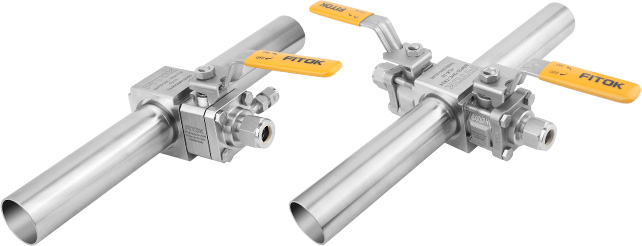

BDP Series Distribution Block Valves





BDP Series Distribution Block Valves



Features



  • Main line tube is full bore
  • Main line tube with orbital welding
  • Branch ball valves are BHP series 3-piece high purity ball valves
  • Main line tube and branch ball valves available in difference sizes
  • Single horizontal cross and double horizontal cross structure type available



Technical Data




Working Temperature -20 °F to 450 °F (-28 °C to 232 °C)
Valve Body Material CF8M
Valve Seat Material Modified PTFE
Internal Surface Roughness Ra 25 μin. (0.6 μm)
Main Line Tube Material 316L SS
Port Size of Main Line Tube 1/2” to 4”



Please see the High Purity Ball Valves Catalog for more information. Should you have any questions, please contact us directly and We will reach you soon.
