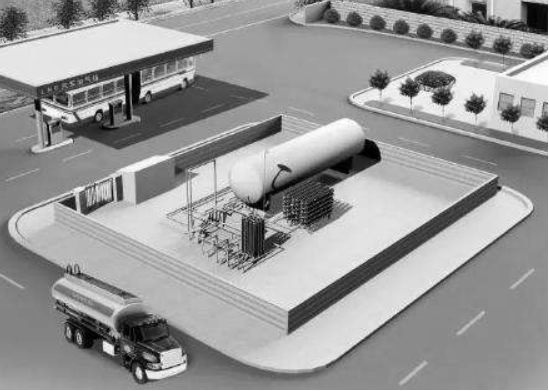

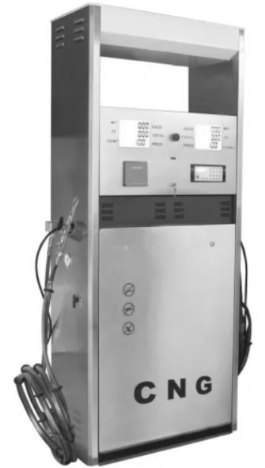

CNG-Powered Vehicle (NGV) and Fueling System Solutions

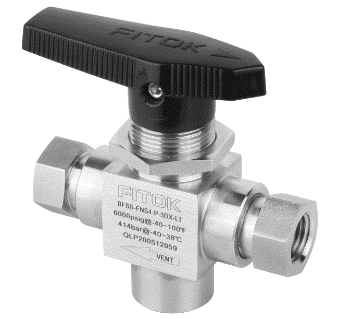

FITOK Fast-fill Ball Valve for CNG Filling Station



New ‘fast fill’ 3-way ball valve
High-cycle life
High-pressure

Part Number: BFSS-FNS4-P-3DL-LT
Max. Working Pressure: 6000psig (414bar)
Working Temperature: -40~200℉ (-40~93℃)
Ball Valve
Ball Valve
Ball Valve



Better external sealing performance by using Hard sealing design for the port connections.

Higher cycle life by using PEEK seats, Low temp.

NBR O-rings and a special vent orifice Ease of actuation by “L” pattern flow path.



FITOK Tube Fittings and Valves ECE R110 Compliant



FITOK offers a full range of fittings and components that are designed to be compatible with Compressed Nature Gas technology and applications, such as CNG-powered passenger cars, NGV busses & trucks, CNG filling stations including CNG compressors. Below products are tested and certified per ECE R110 standard.



• 6D Series Tube Fittings

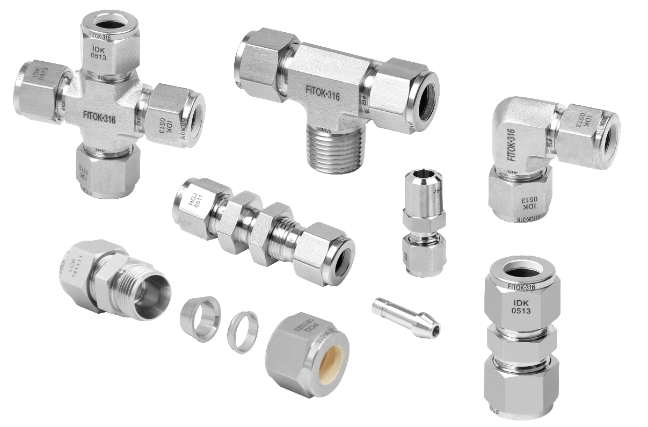

6D Series Tube Fittings

The FITOK tube fittings provide gas-tight sealing performance in critical applications. It is a reliable connection, with fast installation and no special tools required. Additional advantages include relatively stable performance of installation torque and excellent repeated reassembly performance.



• BF Series Ball Valves (-R110)



BF Series Ball Valves

Trunnion ball valves, with ultralow-temperature fluorocarbon material provide sealing capability over the full temperature range -40°F to 248°F (-40°C to 120°C).



• BU Series Ball Valves (-R110)

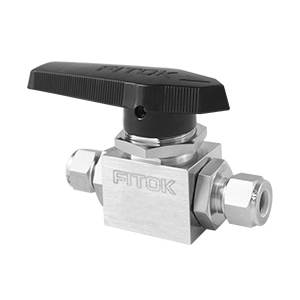

BU Series Ball Valves

Working temperature: -40 to 248°F ( -40 to 120°C), High flow-CV value from 4.0 to 13.8, Bi-directional flow, All components contact with medium are designed to be compatible with hydrogen or CNG.



• CH Series Check Valves (-R110)

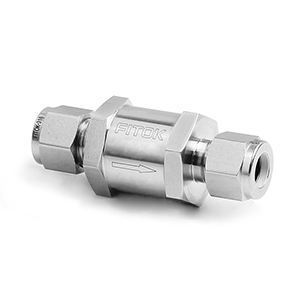

CH Series Check Valves

Working temperature: -40 to 248°F ( -40 to 120°C), Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar), Seat ring continuously cleaned by media, avoiding secondary pollution.



• FT Series Filters (-R110)

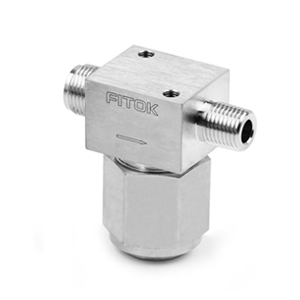

FT Series Filters

FT Series Filters are available in a range of filter sizes with a choice of sintered and strainer elements replaceable without removing the body from the system. Working temperature: -40 to 248°F ( -40 to 120°C).



To order ECE R110 certified valves and filters, please add -R110 to the product ordering number.
