Pressure Regulator Explained (II) : How to Choose a Pressure Regulator

Pressure Regulator Selection Considerations



Pressure regulators play an important role in fluid systems for a variety of applications by reducing inlet pressure to a lower outlet pressure and keeping outlet pressure stable when inlet pressure fluctuates. Various factors need to be considered when selecting a pressure regulator, the most important of which include: flow, pressure, temperature, media and sensing mechanism.



Flow





The size of a pressure regulator is determined by the system flow. Selecting a properly sized pressure regulator facilitates its functional performance, and usually a larger pressure regulator allows for more reliable pressure control at higher flows. The following questions should be considered when selecting a pressure regulator: What is the maximum flow required? What is the flow variation range?

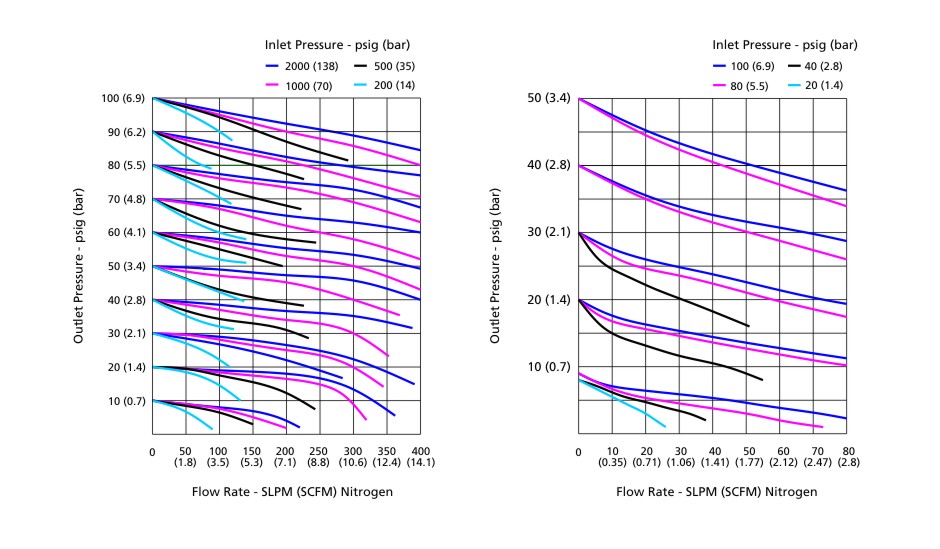

Flow Chart of FCR-1 Series Pressure Regulators

Figure 1 Flow Chart of RDGC Series Pressure Regulators



Pressure





Since the primary function of a pressure regulator is to reduce inlet pressure to a lower outlet pressure, it is critical to select a pressure regulator with proper maximum inlet pressure and outlet pressure control range. When the inlet pressure fluctuates significantly, and yet there is a higher requirement for accuracy and stability of outlet pressure, a dual-stage pressure regulator should be selected to reduce the Supply Pressure Effect (SPE), such as FITOK RDDC Series Two-Stage Diaphragm Regulators, with only 0.01% SPE (SPE is 1% when the inlet pressure is below 500 psig).

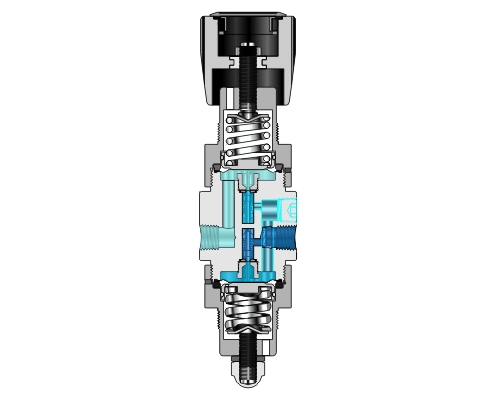

Two-Stage Diaphragm Regulators

Figure 2 Two-Stage Diaphragm Regulators



Temperature





Pressure regulators are required to withstand expected operating temperatures, including ambient temperature, fluid temperature, and temperature changes due to the Joule-Thomson effect, which should be considered comprehensively when selecting a pressure regulator.



Media





Material compatibility between media and pressure regulators is critical as it determines the service life and performance of a pressure regulator. For example, when the medium is hydrogen, select pressure regulators made with FITOK enhanced -316/316L material in preference, whose Ni > 12% and Nieq ≥ 28.5%, thus achieving excellent resistance to hydrogen embrittlement.



Sensing Mechanism





Sensing mechanism is the component to separate the spring force from the fluid force. By sensing fluid pressure changes through the sensing mechanism, pressure regulators are able to respond to maintain the set pressure. Diaphragms and pistons are two main sensing mechanism types: diaphragm is more sensitive to pressure changes while piston is able to withstand higher pressure.

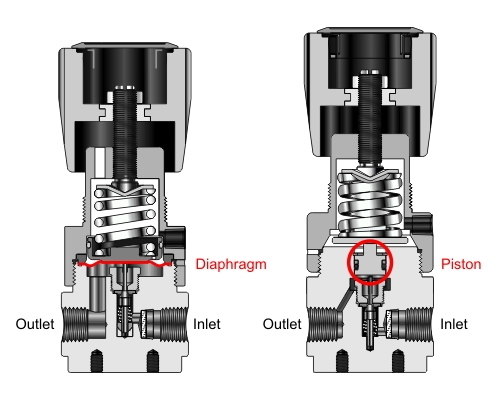

Diaphragm Regulators vs Piston Regulators

Figure 3 Diaphragm Regulators vs Piston Regulators



Due to the O-ring material, piston pressure regulators are not as clean and corrosion resistant as diaphragm pressure regulators. When there is a strict requirement for media cleanliness such as in the semiconductor and pharmaceutical industries, diaphragm pressure regulators are a more desirable choice. For example, FITOK RTGC Series General Tied Diaphragm Regulators with Hastelloy diaphragm sensing mechanism, can meet the requirement for media cleanliness in the semiconductor industry; while RPGC Series General Piston Regulators with piston sensing mechanism, can withstand inlet pressure up to 6,000 psig.



Conclusion





According to the requirements of the application scenario, full consideration of factors including flow rate, pressure, temperature, media and sensing mechanism will contribute to quick and right selection of pressure regulators.



For more information about pressure regulators, please see Pressure Regulator Selection Guide and Full Technical Catalog for Specialty Gas Application. If you have any questions, please contact us directly and We will reach you soon.
