New Product Launch: FITOK Pocket Caliper

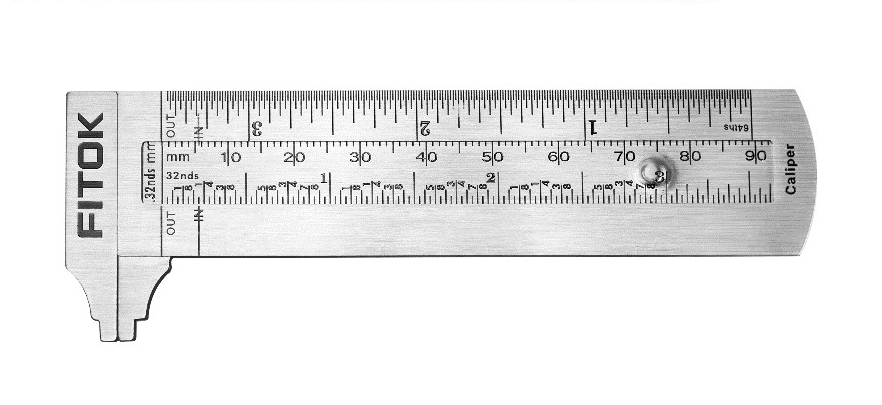

FITOK Pocket Caliper

Introduction



The Pocket Caliper is a compact, lightweight measuring tool that provides easy portability in a pocket or tool kit. It allows for quick and convenient measurement of tube inner and outer diameters, wall thickness, and nominal pipe thread dimensions, enabling on-site preliminary identification and assessment of components. Each set includes a stainless-steel caliper and a protective case to prevent wear and impact damage during transport and storage.



Features



  • Made of stainless steel for excellent durability and corrosion resistance.
  • Measures both fractional and metric dimensions for quick and accurate evaluation of inner and outer diameters.
  • Allows rapid estimation of nominal diameters for threaded pipe connections.



Ordering Information




Ordering Number Maximum Measuring Dimension
PCA-01 75mm or 2 7/8”



Operation Instruction



1. Measuring Tube Diameter



Outer Diameter

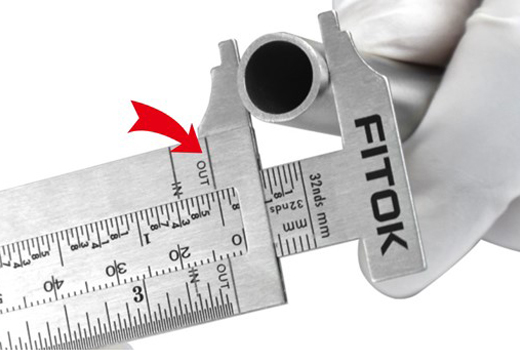

Measuring Tube Outer Diameter



Use the inner sides of the jaws to grip the outer surface of the object being measured, and read the scale value at the "OUT" reference line on the caliper.

Inner Diameter

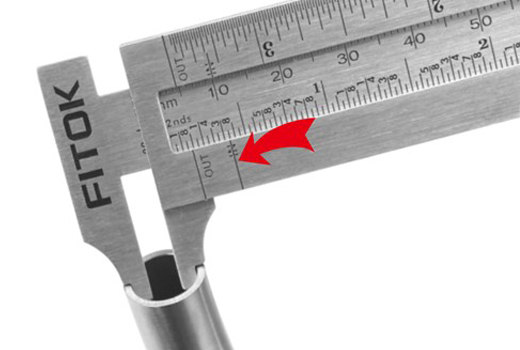

Measuring Tube Inner Diameter



Use the outer sides of the jaws to contact the inner surface of the object being measured, and read the scale value at the "IN" reference line on the caliper.



2. Estimating the Nominal Diameter of Pipe Threads



Male Threads

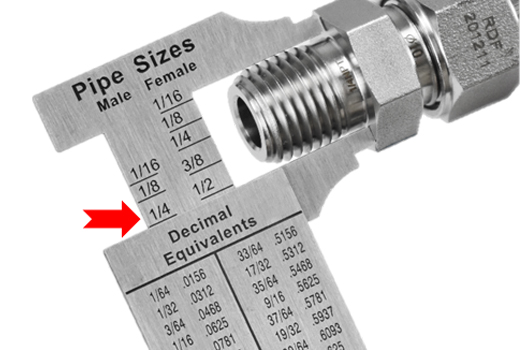

Measuring Male Threads



Use the inner sides of the jaws to grip the outer surface of the object, and read the scale value in the "Male" column on the back of the main scale plate.

Female Threads

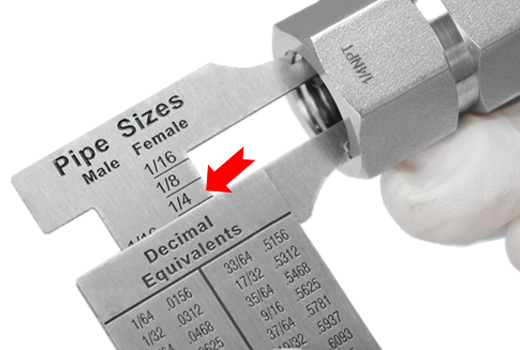

Measuring Female Threads



Use the outer sides of the jaws to contact the inner surface of the object, and read the scale value in the "Female" column on the back of the main scale plate.



3. Decimal Equivalents Chart

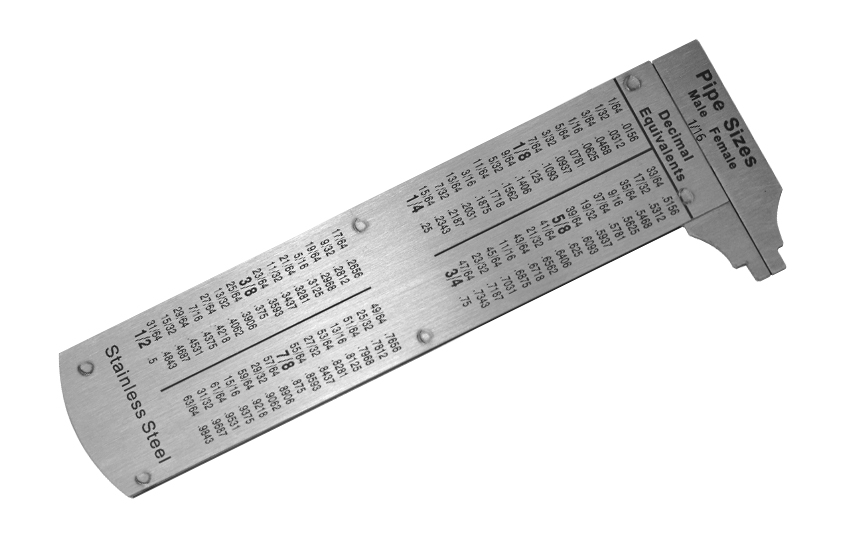

A Fractional to Decimal Chart is provided on the back of the caliper for quick conversions.


FITOK Pocket Caliper



For more information, please refer to the Pocket Caliper Catalog. Should you have any questions, please leave a message online, and we will reach you as soon as possible!
