New Product Launch: FITOK HMF Series Metal Flexible Hoses

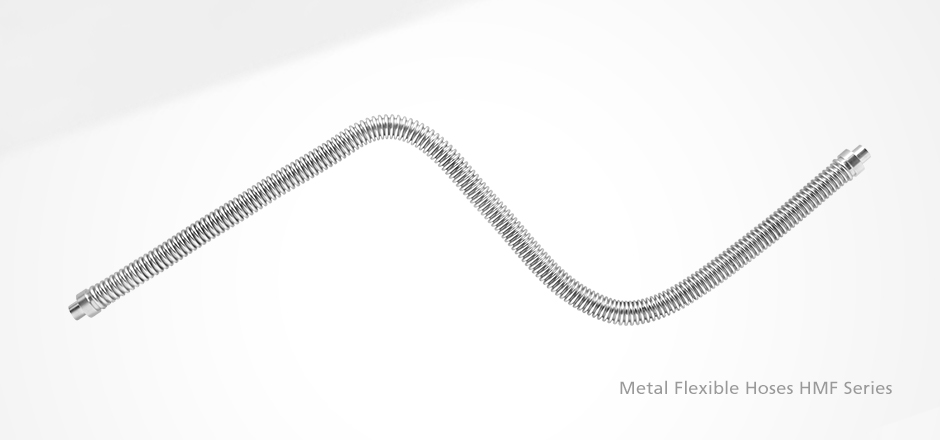

HMF Series Metal Flexible Tubes



Introduction





HMF Series Metal Flexible Hoses feature an all-metal construction that prevents media permeation, making them ideal for static applications with stringent sealing requirements. These hoses can be manually formed to the desired shape and will retain their form to compensate for pipeline misalignment and vibration under vacuum or low-pressure conditions, thereby improving installation efficiency and overall system reliability.



Features





  • Core material: 316L stainless steel
    End connection material: 316 or 316L stainless steel
  • Nominal hose sizes: 1/4" to 1/2"
  • Working pressure range: Vacuum to 135 psig (9.3 bar)
  • All-metal construction suitable for applications with strict media permeation requirements
  • Optional additional helium leak test with a maximum leak rate of 1×10-9std·cm3/s
  • Custom lengths available

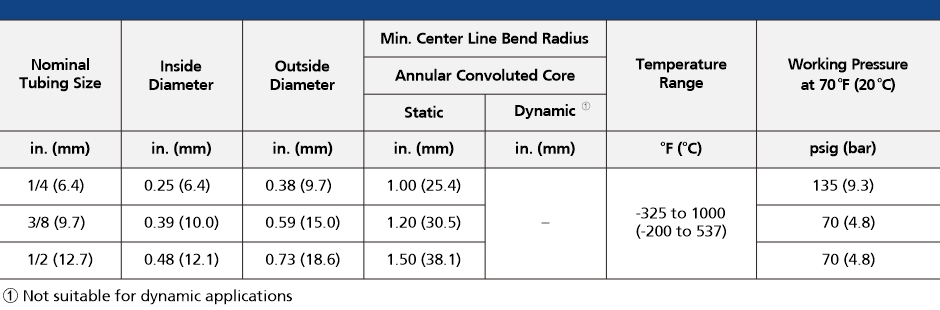

Technical Parameters





HMF Series Metal Flexible Tubes



In addition to the HMF Series Metal Flexible Hoses, FITOK also offers Metal Hoses (MM, MH, and MX series) with working pressures of 1600 psig, 3100 psig, and 6000 psig, Medium and High Pressure Hoses (HHP series) with working pressures up to 31900 psig, as well as PTFE-Lined Stainless Steel Braided Hoses (PS series), Multi-Purpose Push-On Hoses (MP series), Thermoplastic Hoses (TH series), Compact Steel Wire Braided Hydraulic Hoses (HCH series), Hose Connectors and Sleeves (HC series) to meet different application needs.



For more information, please refer to the catalogs for Hoses and Connectors and Medium and High Pressure Hoses. Should you have any questions, please leave a message online, we will reach you as soon as possible!
