FITOK Diaphragm Valves Purify Semiconductor Industry

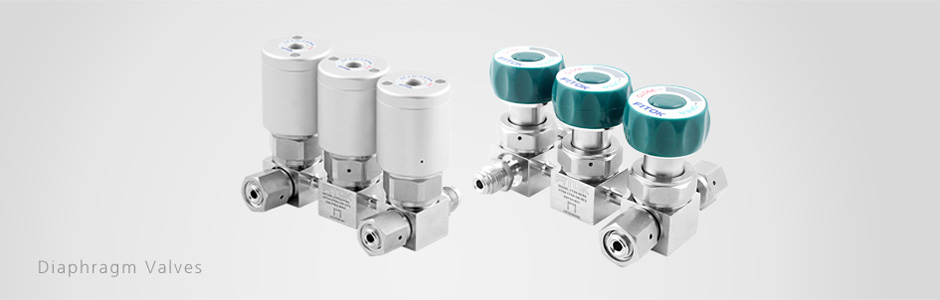

Diaphragm Valves



Introduction





High purity diaphragm valves are mainly used in the semiconductor, natural gas, photovoltaic solar, microelectronics, liquid crystal panel, chemical, pharmaceutical and other industries. They are applicable to conditions with ultra high purity gases, corrosive gases, toxic gases, flammable and explosive fluids.



FITOK has successively developed a variety of ultra high purity diaphragm valves based on years of industry technology accumulation to meet the high standards of the industry.



Features





  • Suitable for ultra high purity applications
  • Metal-to-metal diaphragm seal to atmosphere for leak integrity
  • Radius junction flow design to reduce dead space and minimize contamination
  • Elgiloy diaphragm material with strong durability as well as corrosion resistance for long cycle life
  • Varity of handles and pneumatic actuators available
  • Choice of 2-way (straight and angle), 3-way and 4-way patterns
  • Custom manifolds available upon request

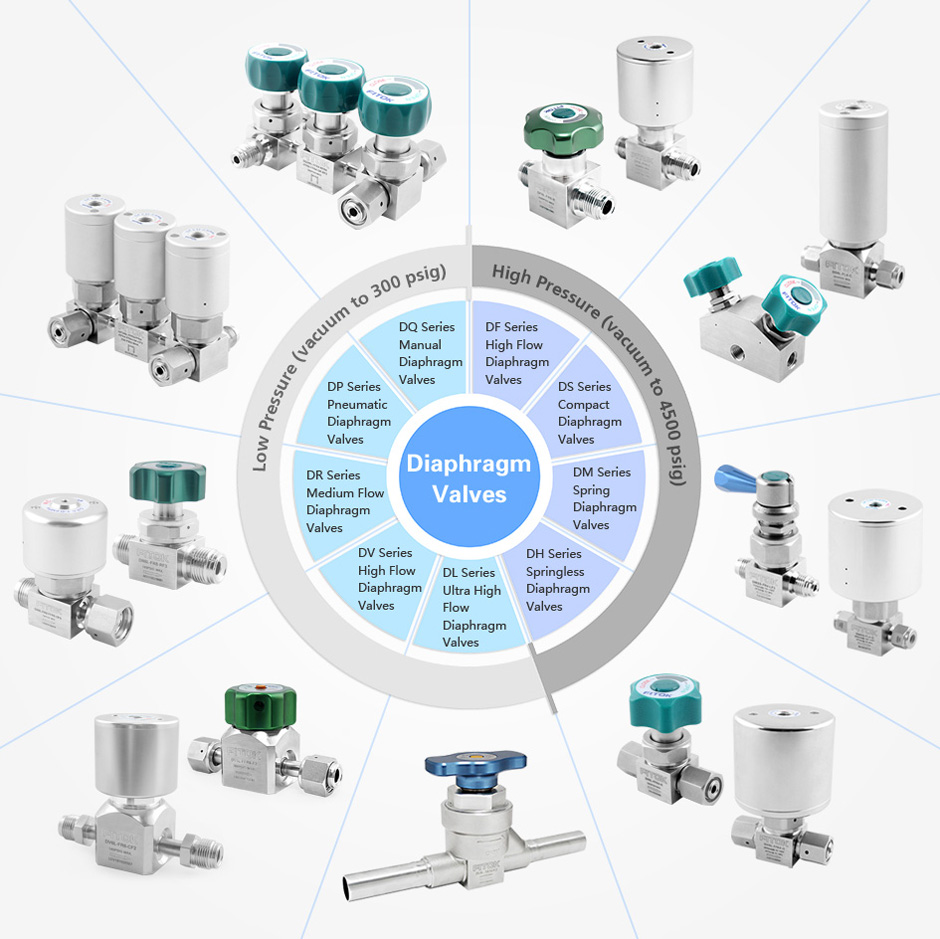

Types





Diaphragm Valves

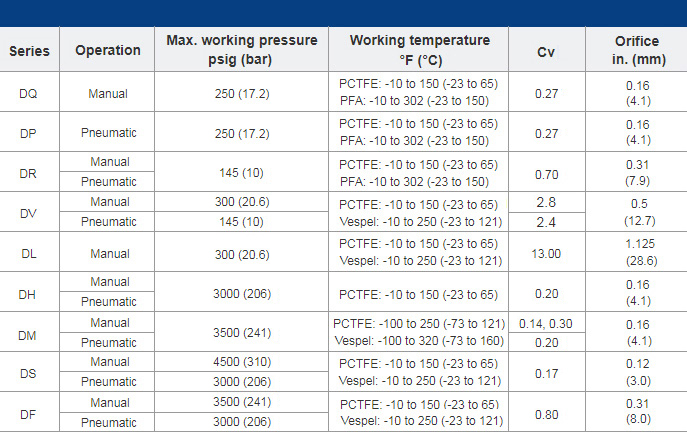

Technical Parameters





Diaphragm Valves

Note: The working temperatures of the seats are derived from experimental data. Please contact us for more service applications.



Quality Assurance

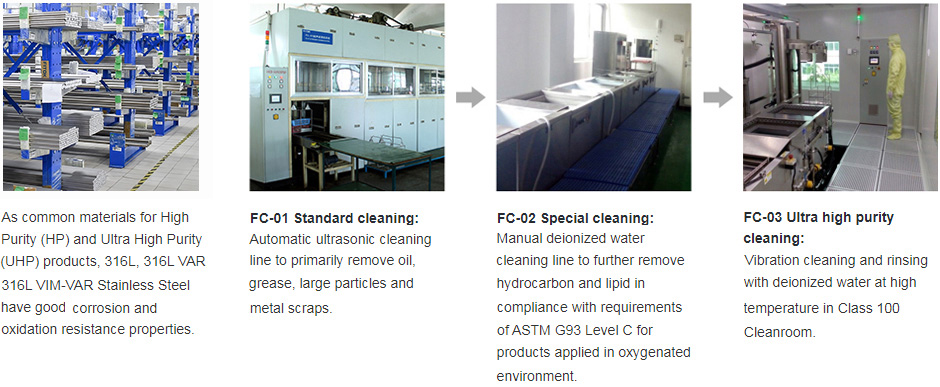

Material & Cleaning process



Diaphragm Valves

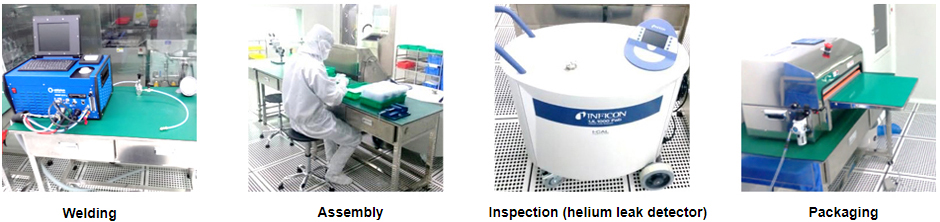

Class 100 clean room



Final welding, assembly, inspection and packaging of ultra high purity products are conducted in the Class 100 cleanroom.



Diaphragm Valves



Please see the product catalog for more information. Should you have any questions, please contact us directly and we will reach you soon.
