Introduction to Ball Valve Handles

Introduction to Ball Valve Handles



Overview





Ball valves are among the most commonly used valves in industrial fluid control systems. Thanks to their simple structure, ease of operation, and quick opening and closing, they are widely used in a broad range of industrial applications.



Within a ball valve assembly, the handle serves as the primary operating component, allowing operators to directly control valve opening and closing. By rotating the handle, the valve can be switched quickly between the open and closed positions. The handle's material and structural design directly affect operating comfort, switching speed, operating torque, and overall reliability, while also influencing maintenance costs and service life.



In practical applications, customers face a wide variety of working conditions, including different pressures, temperatures, process media, installation space limitations, and operating frequencies. As a result, no single handle design is suitable for every application. With years of expertise in fluid control, FITOK offers a comprehensive range of ball valve handle options designed for different service conditions. Each handle features unique structural characteristics, operating performance, and durability. To help customers select the most appropriate handle and avoid problems such as difficult operation, incomplete valve actuation, or handle damage caused by improper selection, this article provides a detailed introduction to the advantages, disadvantages, and recommended applications of each handle type.



Handle Type Options






FITOK Handles Advantages Disadvantages
Lever Handle
Standard Lever Handle, real product actual shot photo Standard Lever Handle
  • The design is highly intuitive: when the handle is parallel to the pipeline, the valve is open; when perpendicular, the valve is closed.
  • Simple structure with fewer components ensures high reliability.
  • Primarily manufactured from stainless steel for good corrosion resistance.
  • A longer handle can be used, where space permits, to reduce operating torque.
  • Requires sufficient horizontal clearance for rotation.
  • The protruding handle may interfere with surrounding equipment.
  • Stainless steel has relatively high thermal conductivity, which may potentially cause injury to the operator in extreme-temperature environments.
Nylon Lever Handle, real product actual shot photo Nylon Lever Handle
  • Nylon is a non-metallic insulating material that provides excellent electrical insulation
  • Offers good resistance to corrosion, making it suitable for humid environments and applications involving mildly acidic or alkaline media.
  • Provides a degree of thermal insulation, reducing the influence of process or ambient temperatures on operator comfort.
  • May deform when exposed to excessively high temperatures.
  • At very low temperatures, nylon becomes less ductile and may become brittle or crack.
Aluminum Lever Handle, real product actual shot photo Aluminum Lever Handle
  • Aluminum has a much lower density than stainless steel, making the handle lighter and easier to operate under identical working conditions.
  • Moderate thermal conductivity allows the handle temperature to change more gradually in both hot and cold environments.
  • Lower mechanical strength than stainless steel.
  • May deform when exposed to excessively high temperatures.
Oval Handle
Oval Handle, real product actual shot photo
  • The oval profile increases the contact area with the hand, distributing pressure more evenly and providing improved grip stability and operating comfort.
  • Its narrow profile helps reduce the space required for operation.
  • Compared with a standard lever handle, stress is distributed more evenly during operation, reducing the likelihood of handle damage.
 Requires relatively higher operating torque.
Butterfly Handle
Butterfly Handle,real product actual shot photo
  • Finger-operated design enables quick and convenient operation.
  • Compact size reduces installation and operating space requirements.
 Difficult to operate under high-pressure conditions because finger force alone may not provide sufficient operating torque.
K-Shaped Handle
K-Shaped Handle，real product actual shot photo Extremely compact design makes it ideal for installations where operating space is extremely limited. Limited gripping area makes it difficult to apply sufficient operating force, particularly in high-pressure applications.
Scorpion Handle
Scorpion Handle,real product actual shot photo The bent handle is positioned above the valve body, requiring much less horizontal operating clearance than a standard lever handle while rotating, reducing horizontal space requirements.
  • Occupies more vertical space than a standard lever handle.
  • The hooked profile may interfere with adjacent equipment.
  • The structural shape is more susceptible to stress concentration during operation, which may cause handle damage.



Other Options for Manual Handles





FITOK offers a variety of options for ball valve handles to satisfy different application requirements.

1. Multiple Color Options

Handles are available in a variety of colors, allowing operators to quickly identify specific valves, reducing the risk of opening or closing the wrong valve.

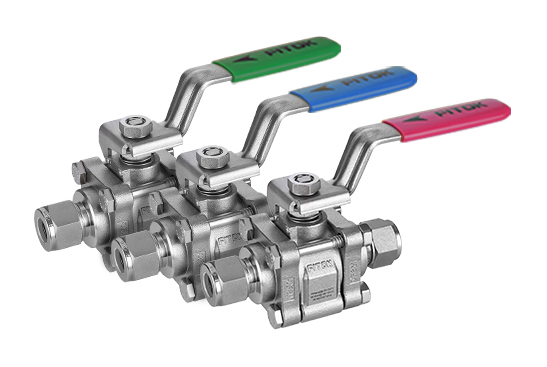

Custom Handle Colors,real product actual shot photo

Custom Handle Colors



2. Locking Device

A valve locking device can be installed to prevent unauthorized or accidental operation, improving overall system safety.

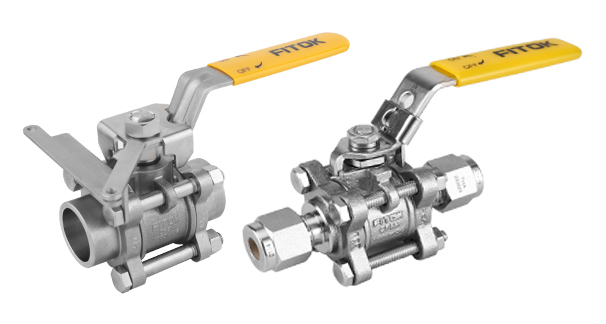

Ball Valve With Locking Device,real product actual shot photo

Ball Valve With Locking Device



3. Special Application Options

FITOK also offers spring-return handles. After the operator releases the handle, it automatically returns to its original position, minimizing the risk of misoperation or incomplete operation. Spring-return handles are widely used in sampling systems to ensure the valve is either fully open or fully closed, helping prevent contamination caused by residual process fluids.

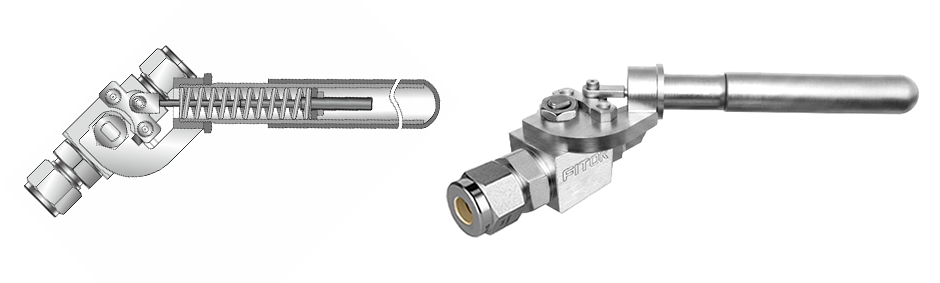

Spring-Return Handle,real product actual shot photo

Spring-Return Handle



Actuated Ball Valves





In addition to manual handle options, FITOK also offers a wide range of pneumatically and electrically actuated ball valves to meet customers' automation and remote control requirements. Available actuator configurations include 90° and 180° rotation, single-acting and double-acting actuators, as well as normally open and normally closed options.

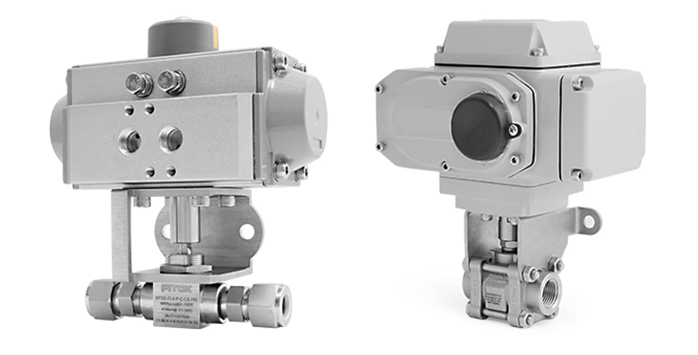

Automated Ball Valve,real product actual shot photo

Actuated Ball Valve



For more information about FITOK ball valves, please refer to the FITOK Ball Valves and Actuated Ball Valves catalogs.



Should you have any questions, please contact FITOK or your local distributor, or visit our website to leave a message. Our team will get back to you promptly.
