New Product Launch: FITOK Tied Diaphragm Regulators

FITOK Tied Diaphragm Regulators RSGC and RSGG Series



Pressure regulators reduce an inlet pressure to a desired outlet pressure and maintain this outlet pressure even with fluctuations in the inlet pressure, and they are widely used in various piping systems. FITOK proudly introduces two series of tied diaphragm regulators: RSGC series and RSGG series. Both feature a tied diaphragm construction combined with a poppet spring design, offering positive shut-off along with improved flow characteristics.



The RSGC Series General Tied Diaphragm Regulators are compact and lightweight, making them ideal for low flow, high purity, and ultra high purity applications. The RSGG Series Medium Flow Tied Diaphragm Regulators feature a large-diameter diaphragm for enhanced pressure sensitivity, making them suitable for medium- to high-flow gas applications.



General Tied Diaphragm Regulators RSGC Series





Features:



  • Lightweight, compact design
  • Lift poppet and diaphragm are made of Alloy 22, offering excellent corrosion resistance
  • Metal-to-metal seal between valve body and diaphragm ensures reliable sealing performance
  • Tied diaphragm construction offers positive shutoff for added safety
  • Reinforced diaphragm improves sealing performance and extends service life
  • Bonnet with a captured vent port allows media to be vented to a designated location in the event of diaphragm rupture

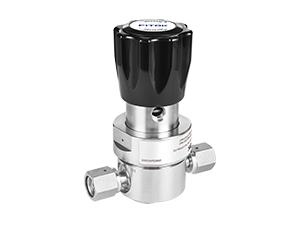

General Tied Diaphragm Regulators
RSGC Series



Technical Data:

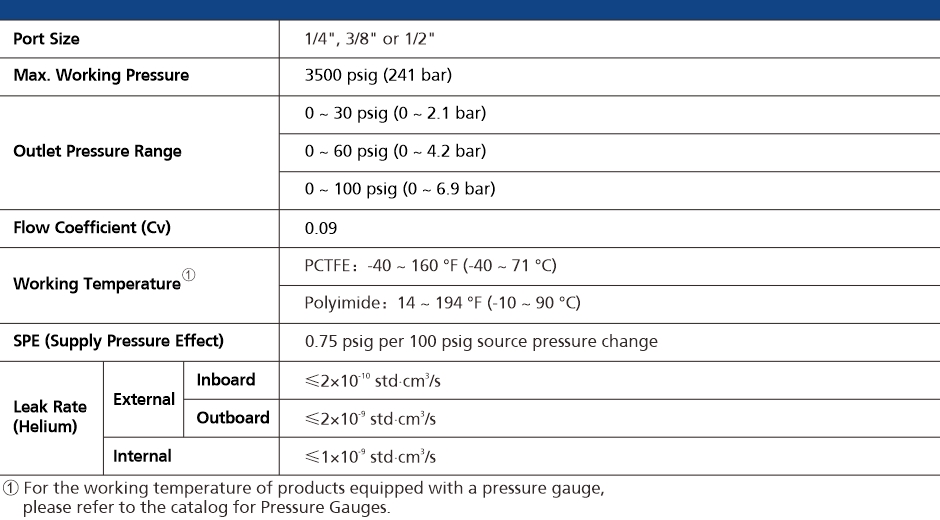

General Tied Diaphragm Regulators
RSGC Series Technical Data



Medium Flow Tied Diaphragm Regulators RSGG Series





Features:



  • Large-diameter diaphragm enhances pressure sensitivity
  • Lift poppet and diaphragm are made of Alloy 22, offering excellent corrosion resistance
  • Metal-to-metal seal between valve body and diaphragm ensures reliable sealing performance
  • Tied diaphragm construction offers positive shutoff for added safety

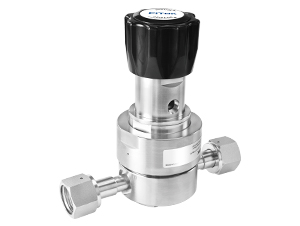

Medium Flow Tied Diaphragm Regulators
RSGG Series



Technical Data:



Medium Flow Tied Diaphragm Regulators
RSGG Series Technical Data



In addition to the RSGC Series General Tied Diaphragm Regulators and the RSGG Series Medium Flow Tied Diaphragm Regulators, FITOK also offers RTGC Series General Tied Diaphragm Springless Regulators and RTCC Series Miniature Tied Diaphragm Regulators featuring a springless, tied diaphragm design; RDDC Series Two-Stage Diaphragm Regulators with exceptionally low SPE levels; and RDGC Series General Diaphragm Regulators and RDCC Series Miniature Diaphragm Regulators, which utilize a free poppet construction.



For more information, please refer to the catalogs for Ultra High Purity Products and Specialty Gas Application. Should you have any questions, please leave a message online, we will reach you as soon as possible!
